Resizing a virtual machine using connectVM CLI on connectVM Cloud🔗
Introduction🔗
When creating a new virtual machine under connectVM, one of the options you choose is the flavor. A flavor is a predefined combination of CPU, memory and disk size and there usually is a number of such flavors for you to choose from.
After the instance is spawned, it is possible to change one flavor for another, and that process is called resizing. You might want to resize an already existing VM in order to:
- increase (or decrease) the number of CPUs used,
- use more RAM to prevent crashes or enable swapping,
- add larger storage to avoid running out of disk space,
- seamlessly transition from testing to production environment,
- change application workload byt scaling the VM up or down.
In this article, we are going to resize VMs using CLI commands in connectVM.
Prerequisites🔗
No. 1 Account
You need a connectVM Cloud hosting account with access to the Horizon interface: https://portal.connectVM.com/.
If you are a normal user of connectVM Cloud hosting, you will have all prerogatives needed to resize the VM. Make sure that the VM you are about to resize belongs to a project you have access to.
How to create a VM using the connectVM CLI client on connectVM Cloud cloud
No. 2 Awareness of existing quotas and flavors limits
For general introduction to quotas and flavors, see Dashboard Overview – Project Quotas And Flavors Limits on connectVM Cloud.
Also:
- The VM you want to resize is in an active or shut down state.
- A flavor with the desired resource configuration exists.
- Adequate resources are available in your connectVM environment to accommodate the resize.
Creating a new VM🔗
To illustrate the commands in this article, let us create a new VM in order to start with a clean slate. (It goes without saying that you can practice with any of the already existing VMs in your account.)

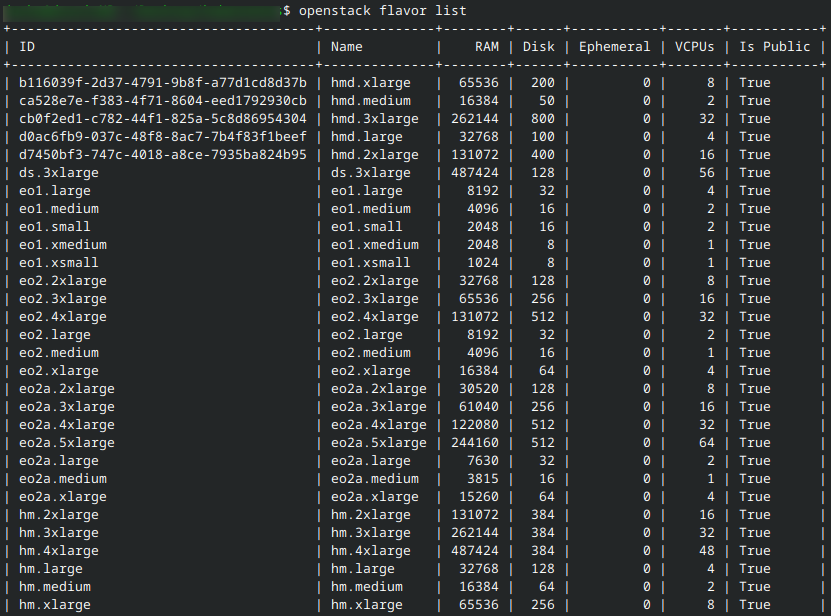

To see all flavors:
connectVM flavor list
This is the command to create a new VM called ResizingCLI:
connectVM server create \
--image "Ubuntu 22.04 LTS" \
--flavor eo2a.large \
--key-name sshkey \
--network cloud_00341_3 \
--security-group default \
--security-group allow_ping_ssh_icmp_rdp \
ResizingCLI

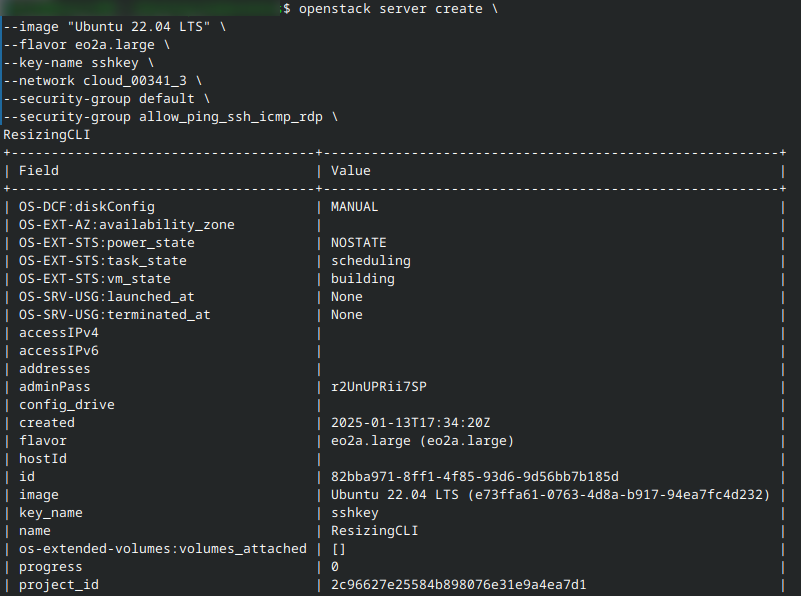

This is the result:
The id for ResizingCLI is 82bba971-8ff1-4f85-93d6-9d56bb7b185d and we can use it in various commands to denote this particular VM.
To see all currently available VMs, use command
connectVM server list
Steps to Resize the VM🔗
To resize a VM with CLI, there is a general command
connectVM server resize --flavor <new_flavor> <vm_name_or_id>
We need flavor ID or name as well as VM’s name or id.
In this example we want to scale up the existing VM ResizingCLI, using eo2.xlarge flavor. The command will be:
connectVM server resize --flavor eo2.xlarge ResizingCLI

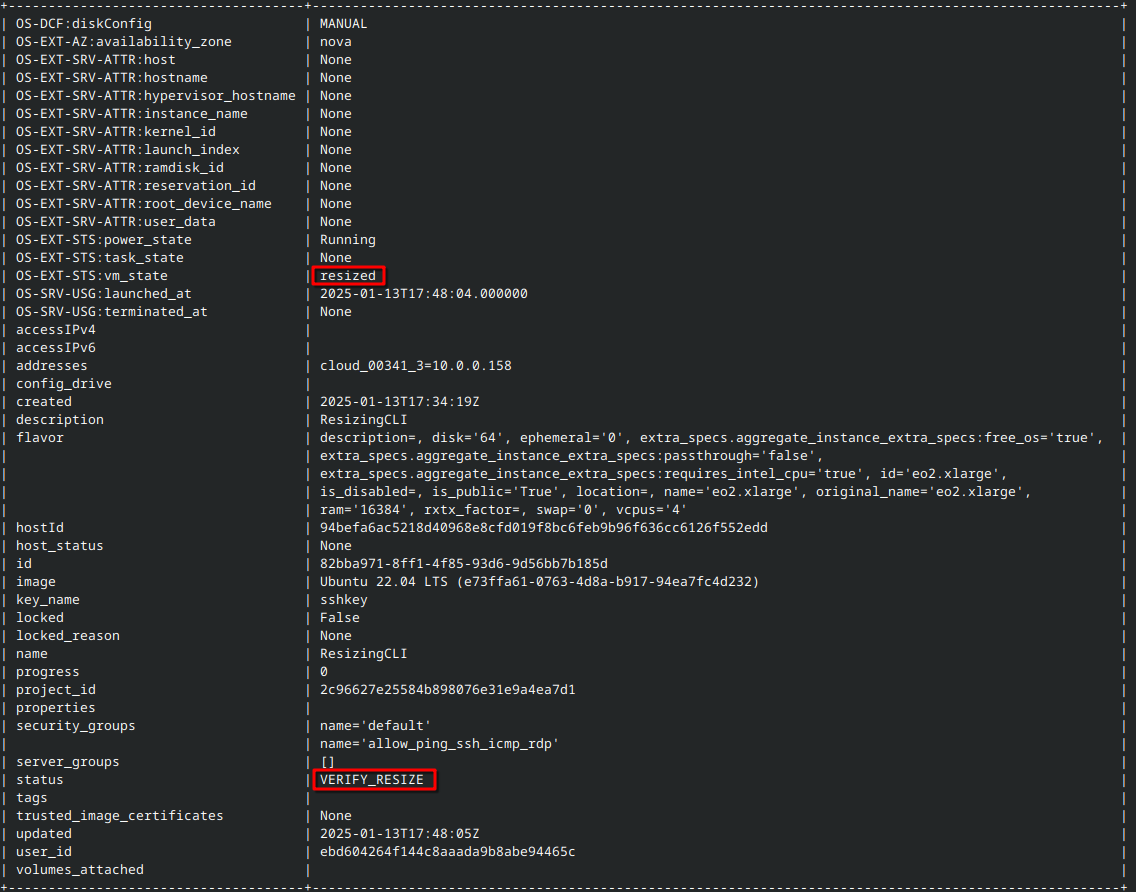

To verify the resize, check the status of the VM:
connectVM server show ResizingCLI
When the VM has VERIFY_RESIZE status, we are able to confirm the resize. The command is:
connectVM server resize confirm ResizingCLI
Execute once again:
connectVM server show ResizingCLI
to see the real state of the VM after confirmation. We will now see that the status is ACTIVE.
Reverting a resize🔗
Reverting a resize switches the VM back to its original flavor and cleans up temporary resources allocated during the resize operation.
It is only possible to revert a resize if the status is VERIFY_RESIZE. The command would be:
connectVM server resize revert ResizingCLI
If status is not VERIFY_RESIZE, we will get message stating that it is not possible to revert resize while it is in an active state (HTTP 409). In that case, perform the “regular” resizing with connectVM server resize.
What To Do Next🔗
You can also resize the virtual machine using only connectVM CLI. More details here: /connectVMcli/Resizing-a-virtual-machine-using-connectVM-Horizon-on-connectVM-Cloud
