How to create a set of VMs using 3Engines Heat Orchestration on 3Engines Cloud🔗
Heat is an 3Engines component responsible for Orchestration. Its purpose is to deliver automation engine and optimize processes.
Heat receives commands through templates which are text files in yaml format. A template describes the entire infrastructure that you want to deploy. The deployed environment is called a stack and can consist of any combination out of the 102 different resources that are available in 3Engines.
What We Are Going To Cover🔗
- Typical parts of a Heat template
- Basic template for using Heat
- How to get data for Heat Template
- Using Heat with CLI
- Using Heat with GUI
- More advanced template for Heat
Prerequisites🔗
No. 1 Account
You need a 3Engines Cloud hosting account with access to the Horizon interface: https://horizon.3Engines.com.
No. 2 Installed Python and its virtualenv
If you want to use Heat through CLI commands, Python must be installed and its virtual environment activated. See article How to install Python virtualenv or virtualenvwrapper on 3Engines Cloud.
If you have never installed one of the 3Engines clients, see :How To Install 3Engines and Magnum Clients for Command Line Interface to 3Engines Cloud Horizon.
Always use the latest value of image id🔗
From time to time, the default images of operating systems in the 3Engines Cloud cloud are upgraded to the new versions. As a consequence, their image id will change. Let’s say that the image id for Ubuntu 20.04 LTS was 574fe1db-8099-4db4-a543-9e89526d20ae at the time of writing of this article. While working through the article, you would normally take the current value of image id, and would use it to replace 574fe1db-8099-4db4-a543-9e89526d20ae throughout the text.
Now, suppose you wanted to automate processes under 3Engines, perhaps using Heat, Terraform, Ansible or any other tool for 3Engines automation; if you use the value of 574fe1db-8099-4db4-a543-9e89526d20ae for image id, it would remain hardcoded and once this value gets changed during the upgrade, the automated process may stop to execute.
Warning
Make sure that your automation code is using the current value of an OS image id, not the hardcoded one.
Basic template for using Heat🔗
Using the following snippet, you can create one virtual machine, booted from ephemeral disk. Create a text file called template.yaml with your favorite text editor and save it to disk:
heat_template_version: 2015-04-30
resources:
instance:
type: OS::Nova::Server
properties:
flavor: eo1.xsmall
image: Ubuntu 18.04 LTS
networks:
- network: <type in your network name here, e.g. cloud_00341_3>
- network: <type in your network name here, e.g. eodata_00341_3>
key_name: <type in your ssh key name>
security_groups:
- allow_ping_ssh_icmp_rdp
- default
Important
Yaml format does not allow for tabs, you must enter spaces instead.
Typical parts of a Heat template🔗
Here are the basic elements of a Heat template:
- heat_template_version
- The exact version of heat template. Each of them varies in many ways (including support for various modules, additional parameters, customization etc). See Orchestration -> Template Versions.
- resources
- Entry to commence providing particular components for deployment.
- instance
- Name of resource (you can type in anything on your own).
- type
- Definition of an 3Engines component (a comprehensive list is under Orchestration -> Resource Types)
- properties
- Required parameters for deploying a component.
Note
Your account will normally have a network starting with cloud_ but it may also have other networks. In the following examples, we use network called eodata_ as an example of an additional network that can be added while creating and using Heat templates.
How to get data for Heat template🔗
Templates need data for images, flavor networks, key pairs, security groups and so on. You would normally know all these elements in advance, or you could “look around” at various parts of 3Engines environment:
| flavor | Compute -> Instances -> Launch Instance -> Flavor |
| image | Compute -> Instances -> Launch Instance -> Source |
| networks | Network -> Networks -> cloud and eodata networks for your domain |
| key_name | Compute -> Key Pairs |
| security_groups | Network -> Security Groups |
You can work with Heat in two ways:
- through Command Line Interface (CLI), with python-heatclient preinstalled and
- interactively, through Horizon commands.
Using Heat with CLI🔗
Assuming you have
- installed Python and
- activated its working environment
as explained in Prerequisite No. 2, run pip command to install python-heatclient:
pip install python-heatclient
To run a prepared template in order to deploy a stack, this is what a general command would look like:
3Engines stack create -t template.yaml <stackname>
where -t assigns template for deployment and defines name for the stack.
As a result, a new Stack would be executed and a new instance would be created. For example, the command
3Engines stack create -t template.yaml heat-test2

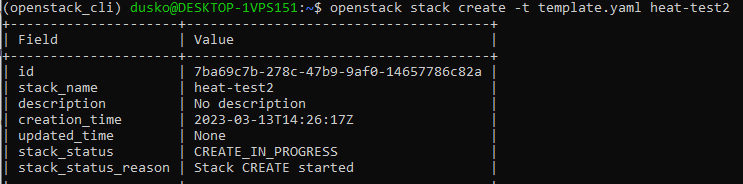

would produce the following output:

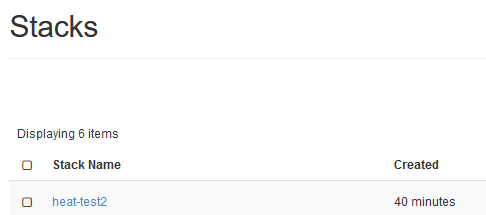

In Horizon, this is what you would see under Orchestration -> Stacks:

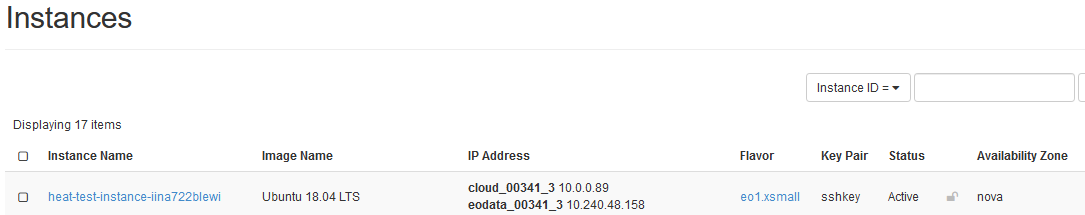

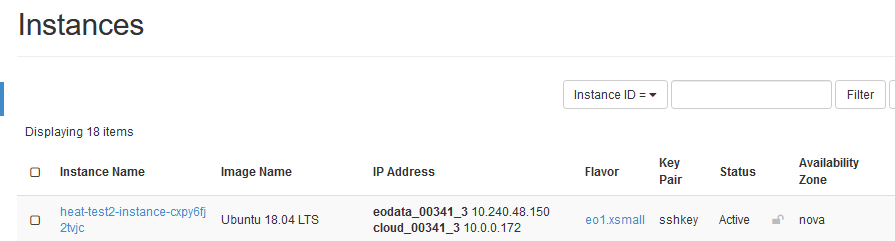

A new instance would be created under Compute -> Instances:
Using Heat with GUI🔗

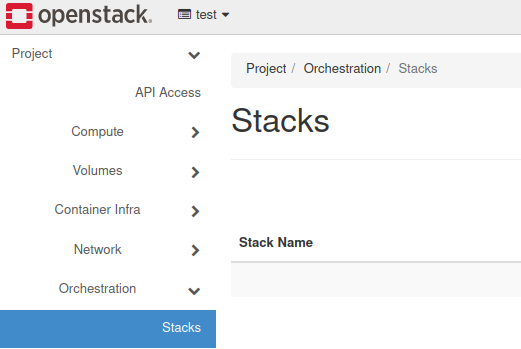

Log in to the Horizon dashboard, choose Orchestration and then Stacks tab:
Navigate to the right part of the screen, click on button
and bring Select Template window to the screen.

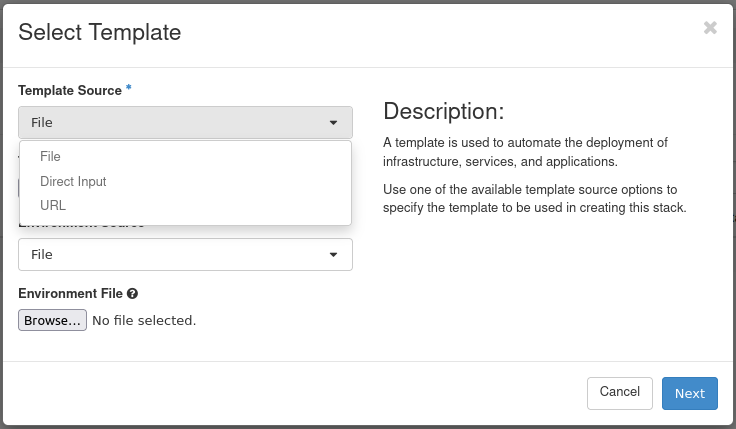

Enroll Template Source selector and choose a particular file, Direct Input or URL to your template.

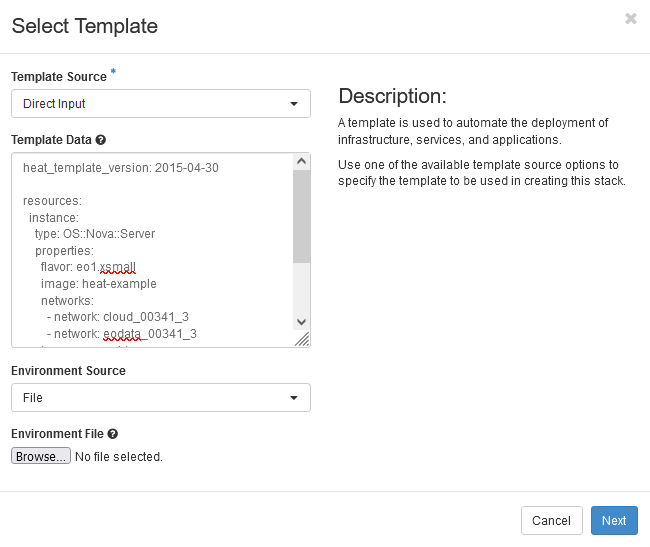

Enter the text of the template you copied from file template.yaml directly into the form:

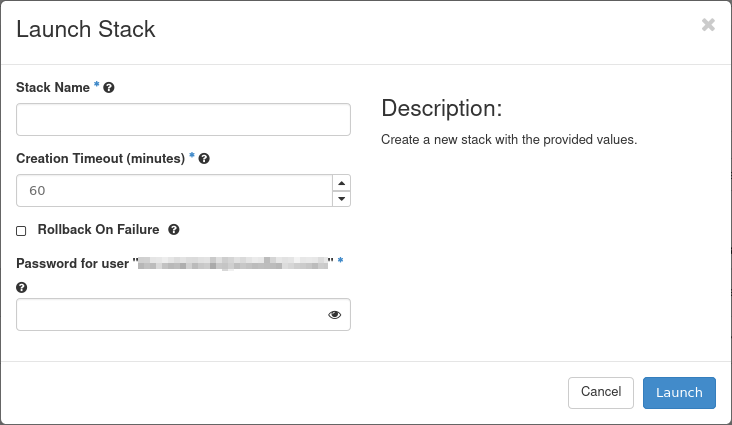

Provide a name of your stack and your 3Engines password:

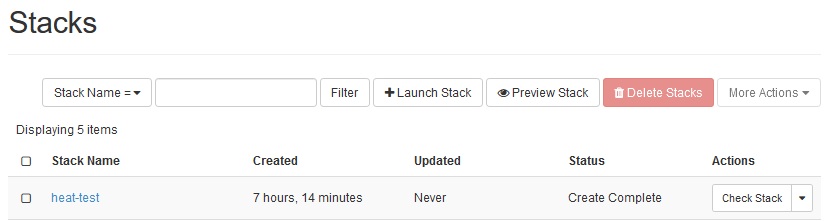

As a result, a new Heat template will have been created:
By creating a stack in Horizon you have also executed that template. The result is that a new instance has been created – see it under Compute -> Instances:
We end up with two stacks and two new instances, once using a CLI and the other time, using a GUI.
Create four VMs using an advanced Heat template🔗
In the following example we will attach parameters and then create ResourceGroup with counter, a VM booted from Cinder Volume and several predefined outputs. In parameter count we state that we want to generate 4 instances at once, which will yield us the automation that we wanted in the first place. Save the following code as template4.yaml:
heat_template_version: 2015-04-30
parameters:
key_name:
type: string
label: sshkey
description: SSH key to be used for all instances
default: <insert your ssh key name here>
image_id:
type: string
description: Image to be used. Check all available options in Horizon dashboard or, with CLI, use 3Engines image list command.
default: Ubuntu 18.04 LTS
private_net_id:
type: string
description: ID/Name of private network
default: <insert your network name here, e.g. cloud_00341_3>
resources:
Group_of_VMs:
type: OS::Heat::ResourceGroup
properties:
count: 4
resource_def:
type: OS::Nova::Server
properties:
name: my_vm%index%
flavor: eo1.xsmall
image: { get_param: image_id }
networks:
- network: { get_param: private_net_id }
key_name: { get_param: key_name }
security_groups:
- allow_ping_ssh_icmp_rdp
- default
VOL_FAQ:
type: OS::Cinder::Volume
properties:
name: vol
size: 20
image : { get_param: image_id }
With_volume:
type: OS::Nova::Server
properties:
flavor: eo1.xsmall
block_device_mapping: [{"volume_size": 20, "volume_id": { get_resource: VOL_FAQ }, "delete_on_termination": False, "device_name": "/dev/vda" }]
networks:
- network: { get_param: private_net_id }
key_name: { get_param: key_name }
security_groups:
- allow_ping_ssh_icmp_rdp
- default
image : { get_param: image_id }
outputs:
SERVER_DETAILS:
description: Shows details of all virtual servers.
value: { get_attr: [ Group_of_VMs, show ] }
The first step is to create a real volume (called VOL_FAQ) and the second is to create a VM (With_volume).
Explanation
- Parameters
- Here you provide default values (key_name, image_id, private_net_id in this case) and later inject them into resource definitions. The syntax is:
{get param: param_name } - ResourceGroup
- Component being used for repeating deployment, e.g two identical VM’s.
- Count
- Defines a variable for iterative operations.
- resource_def
- Starting statement for defining group resources.
- %index%
- This is how you add iterative number to the VM name, increasing values starting from 0.
- block_device_mapping
- Property to define a bootable Cinder volume for instance.
- outputs
- Additional information concerning deployed elements of the stack. In this case it returns a “show” attribute output. You can examine this kind of information by using 3Engines stack output list. Available attributes for every component can be found here..
Execute the template with the following command:
3Engines stack create -t template4.yaml four
The name of the stack will be four. This is the result in CLI window:

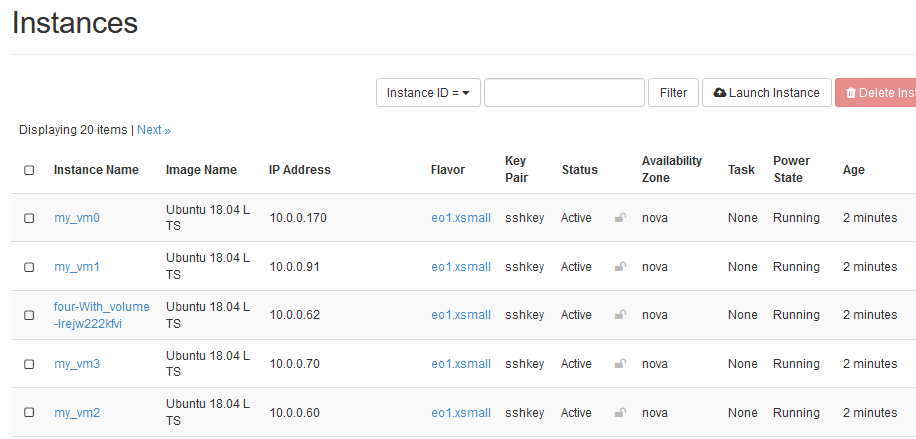

Under Compute -> Instance you would see five new instances created:
Four of them have names my_vm0, my_vm1, my_vm1 and my_vm1, as defined in line name: my_vm%index% in the template. The fifth is called four-With_volume-lrejw222kfvi. Its name starts the same as the name of the template itself while the rest is automatically generated.
What To Do Next🔗

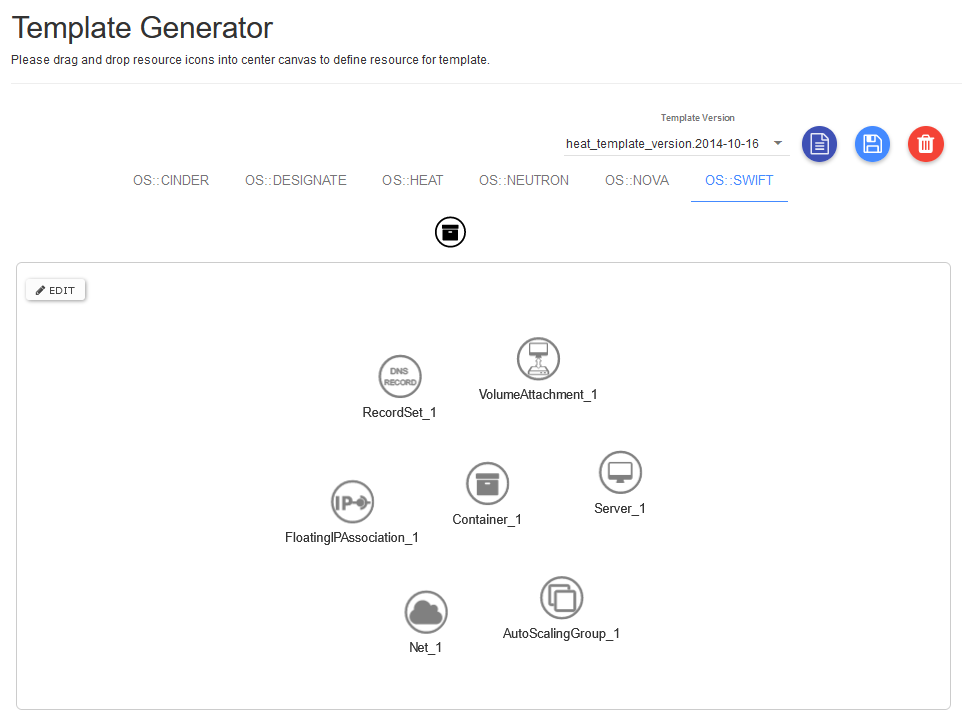

You can write your own templates as yaml files or you can use option Orchestration -> Template Generator, which will enable you to enter components in an interactive way:
Further explanation of this option is out of scope of this article.
